| Silent Roots Blower | 50HZ-4P | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Motor | Bore (mm) |

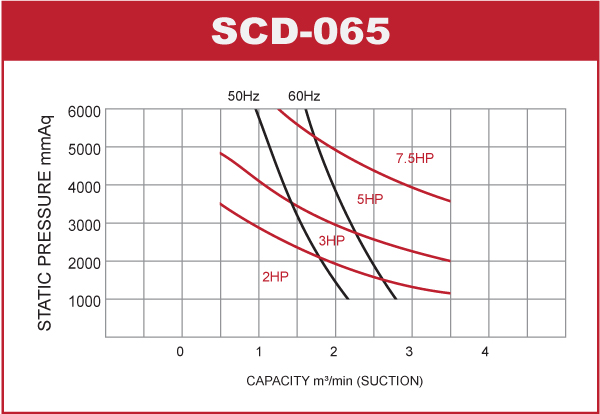

Performance table Qs (m3/min) PRESSURE (mmH2O) La (Kw) | ||||||||||
| 1000 (mmH2O) | 2000 (mmH2O) | 3000 (mmH2O) | 4000 (mmH2O) | 5000 (mmH2O) | 6000 (mmH2O) | ||||||||
| Qs | La | Qs | La | Qs | La | Qs | La | La | Qs | La | |||
| SCD65 | 2.2Kw. | 65 | 2.17 | 0.94 | 1.82 | 1.43 | 1.56 | 1.92 | - | - | - | - | - |
| 3.7Kw. | 65 | 2.17 | 0.94 | 1.82 | 1.43 | 1.56 | 1.92 | 1.34 | 2.41 | 1.14 | 0.97 | 3.39 | |
| 0.75kW=1HP, 1.5kW=2HP, 2.2kW=3HP, 3.7kW=5HP, 5.5kW=7.5HP, 7.5kW=10HP 11kW=15HP, 15kW=20HP, 18.5kW=25HP, 22kW=30HP, 30kW=40HP, 37kW=50HP |
|||||||||||||
| Model | L | W | H |
|---|---|---|---|
| SCD65 | 691 | 352 | 1131 |
