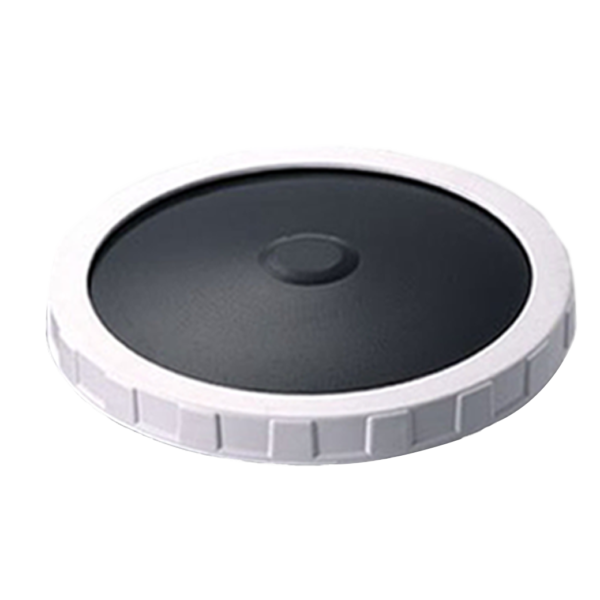

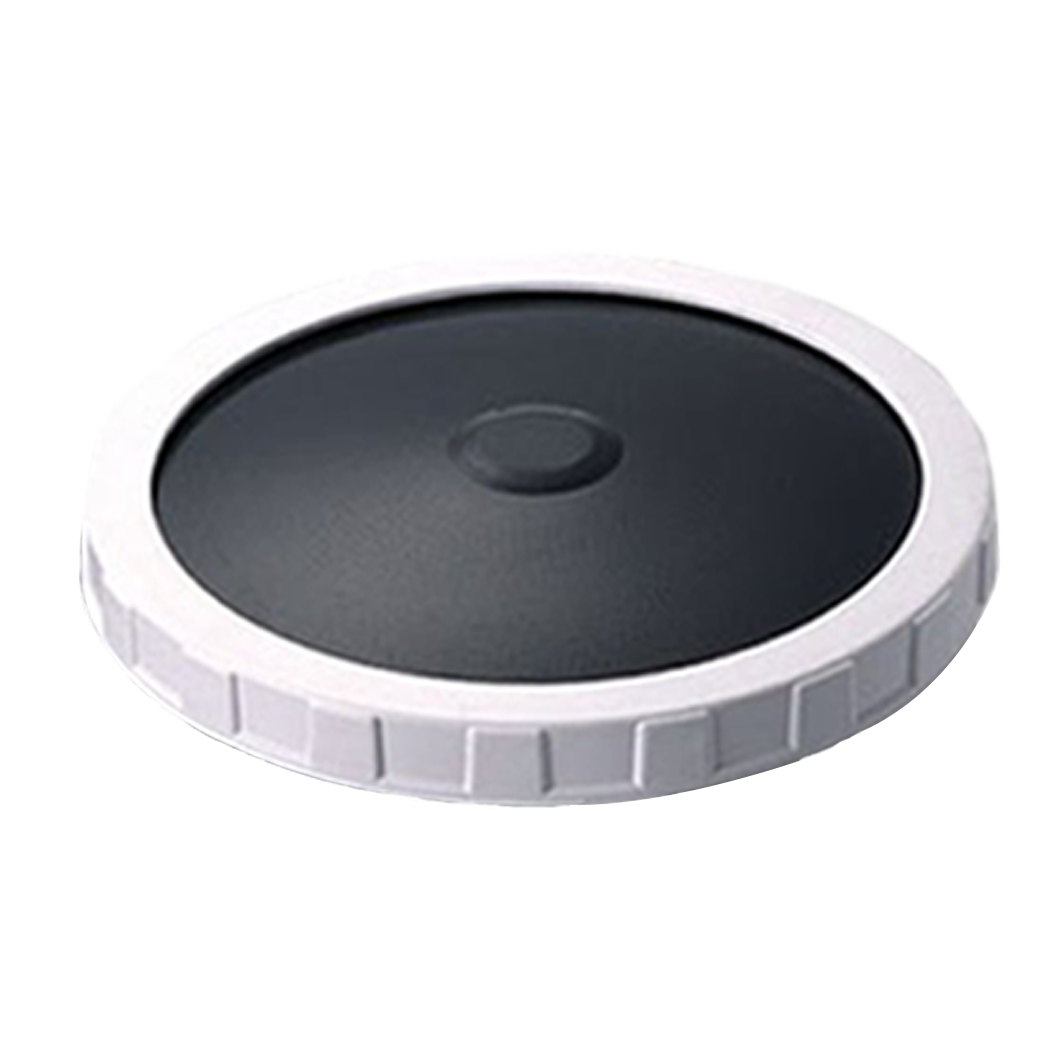

| MODEL | FD320-H |
|---|---|
| Working air flow (m3/h) | 02-Aug |
| Designed air flow (m3/h) | 4 |
| Service area (m2/pice) | 0.45-0.75 |
| Oxygen utillization ratio (%) | >30 |
| Oxygenate capability (kg O2/h) | 0.25-0.5 |
| Water submerged depth (m) | 04-Aug |
| Theoretic dynamic efficency (kg O2/kw.h) | 6.5 |
| Drag loss (pa) | <3000 |
| Diameter (mm) | 320 |
| Type | Fine bubble |
