1. Float buoyancy : Triangular round shaped cone size⌽73×100, extra buoyant.
2. Material : SUS304/316 Float, Silicone wire
3. Resistance : Rust, Oil, corrosion, heat resistant to 200o
4. Precision : 15~20o Angle (Customizable 40o~50o angle mecury switch)
WARNNING : MAX 200oC

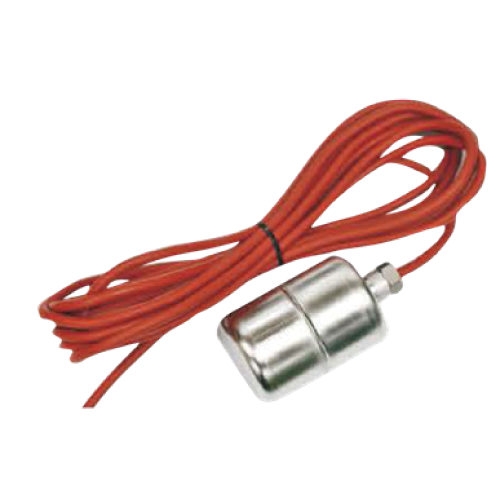

| Model | FA-S8000-6 |
|---|---|
| SWITCH | MERCURY SWITCH |
| Voltage | 1A 250VAC |
| Working Pres sure | 2kgf/cm2 (100M under water) |
| Working Temp | 200oC |
| FLOAT Material | SUS 304/316 |

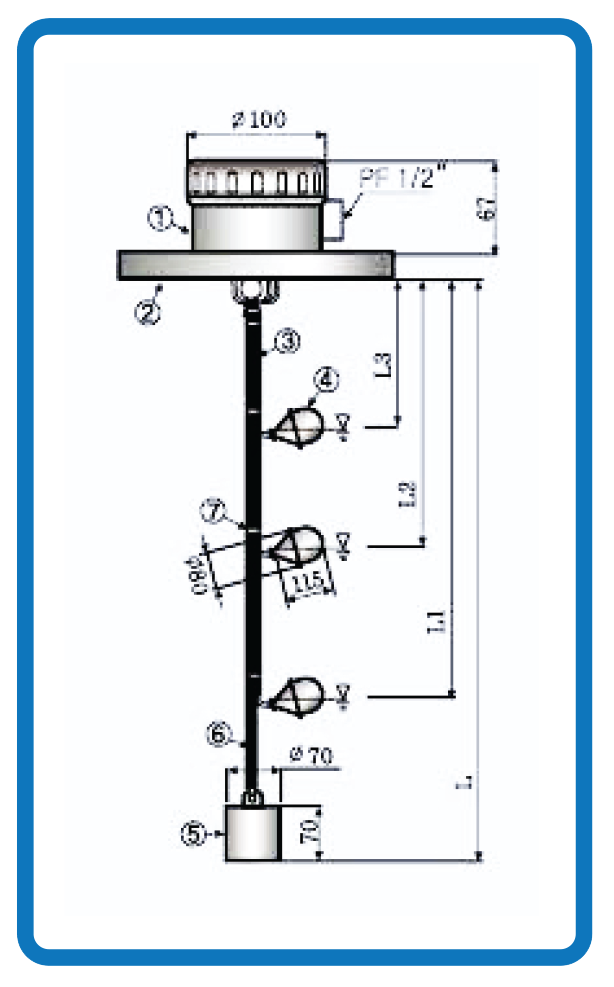

| FLOAT Size | ⌀73/100 |
| CABLE Material | SILICON |

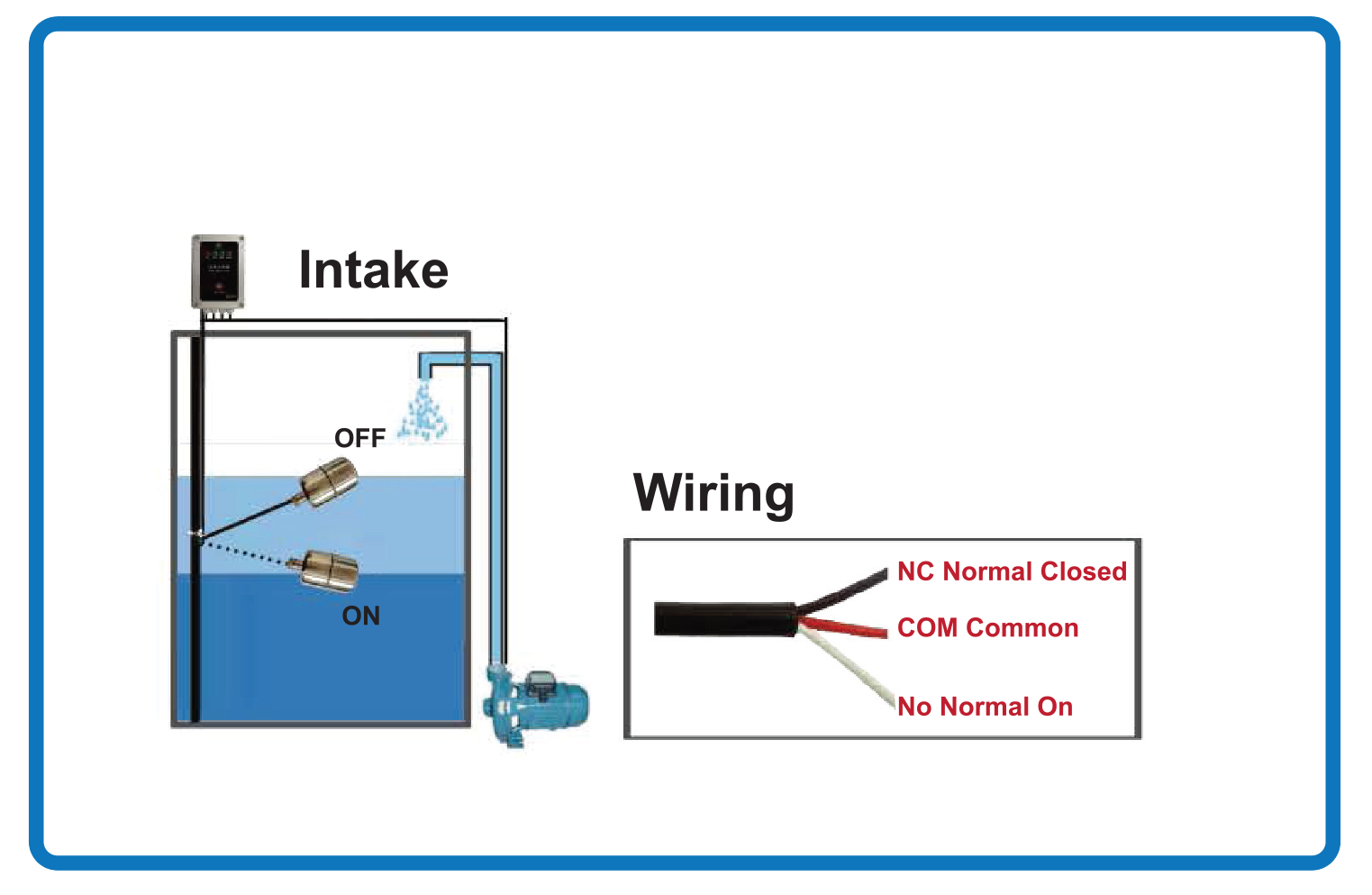

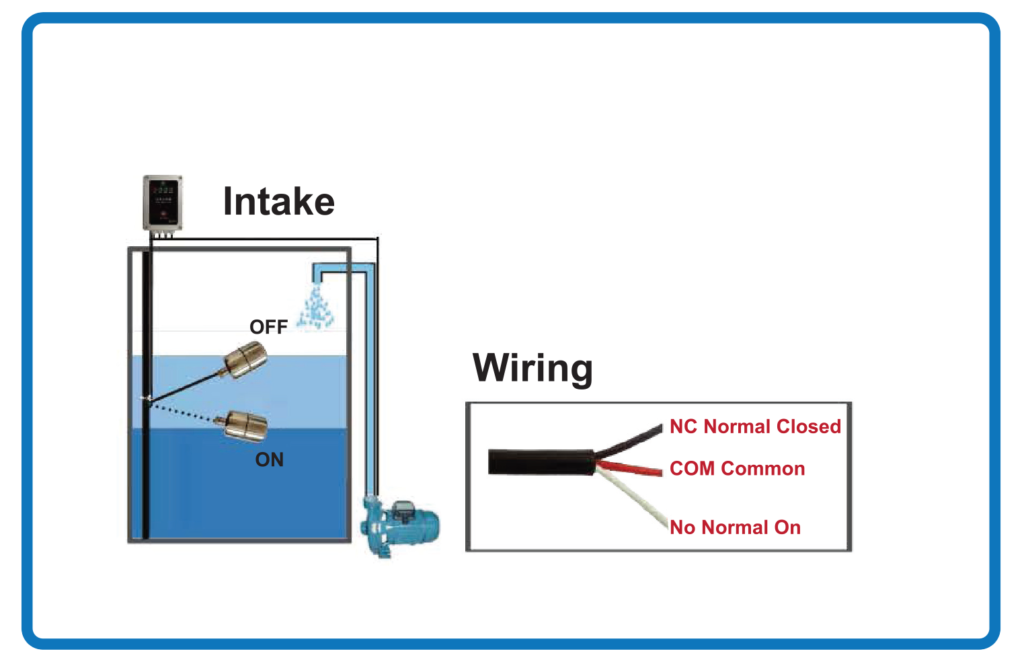

| CABLE Cores | White, Red, Black. 3C. 2C |
| Protection LVL | IP68 |
| Operatinal Life | 50,000 |
| Cable Length | 6M |
