SCB-100

Pressure roots blower

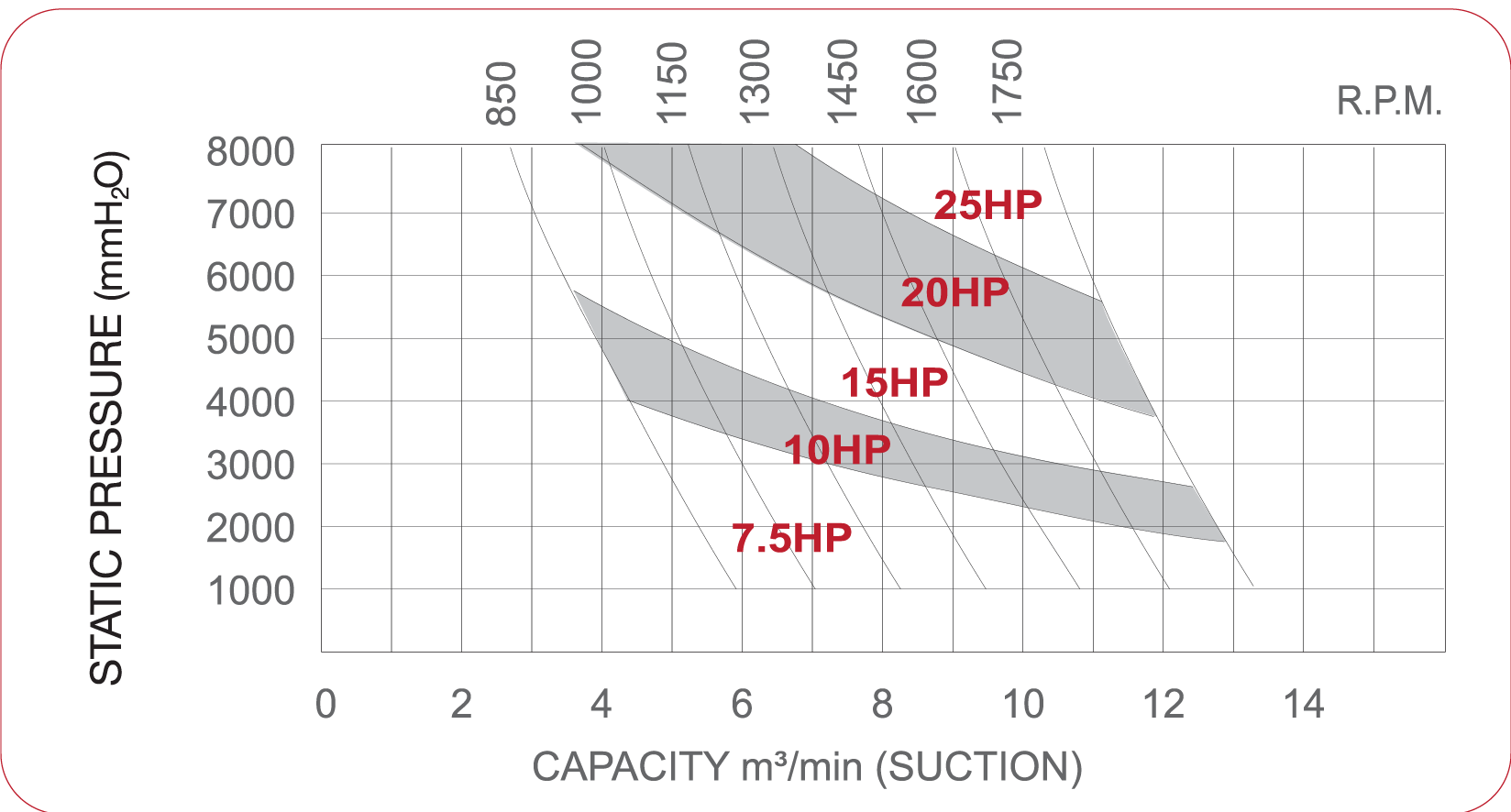

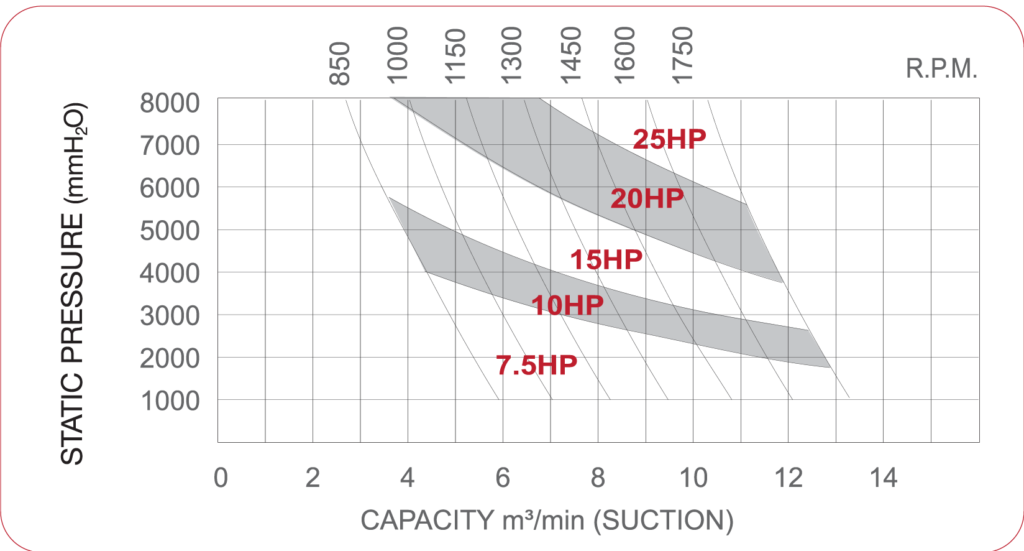

Performance table Qs (m³/min) PRESSURE (mm H₂O) La(kW)

TYPE	RPM	1000 mm H₂O		2000 mm H₂O		3000 mm H₂O		4000 mm H₂O		5000 mm H₂O		6000 mm H₂O		7000 mm H₂O		8000 mm H₂O
TYPE	RPM	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SCB-100	850	5.80	1.57	5.19	3.00	4.65	4.31	4.16	5.51	3.74	6.63	3.36	7.66	3.03	8.62	2.74	9.51
	1000	7.06	1.84	6.45	3.53	5.91	5.07	5.42	6.49	5.00	7.80	4.62	9.01	4.29	10.14	4.00	11.19
	1150	8.32	2.12	7.71	4.05	7.17	5.83	6.68	7.46	6.26	8.97	5.88	10.36	5.55	11.66	5.26	12.86
	1300	9.58	2.40	8.97	4.58	8.43	6.59	7.94	8.43	7.52	10.14	7.14	11.71	6.81	13.18	6.52	14.54
	1450	10.84	2.67	10.23	5.11	9.69	7.35	9.20	9.41	8.78	11.31	8.40	13.06	8.07	14.70	7.78	16.22
	1600	12.10	2.95	11.49	5.64	10.95	8.11	10.46	10.4	10.04	12.47	9.66	14.42	9.33	16.22	9.04	17.90
	1750	13.36	3.23	12.75	6.17	12.21	8.87	11.72	11.4	11.30	13.64	10.92	15.77	10.59	17.74	10.30	19.57

Units : kW

1000 mmH₂0 = Approx 0.1 kg/cm² = Approx 0.01 MPa

5.5

7.5

MODEL	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	S	T	WT.(Kg)
SCB-040	150	160	120	15	350	80	15	1.5	12	340	45	50	50	400	18	135	10	70
