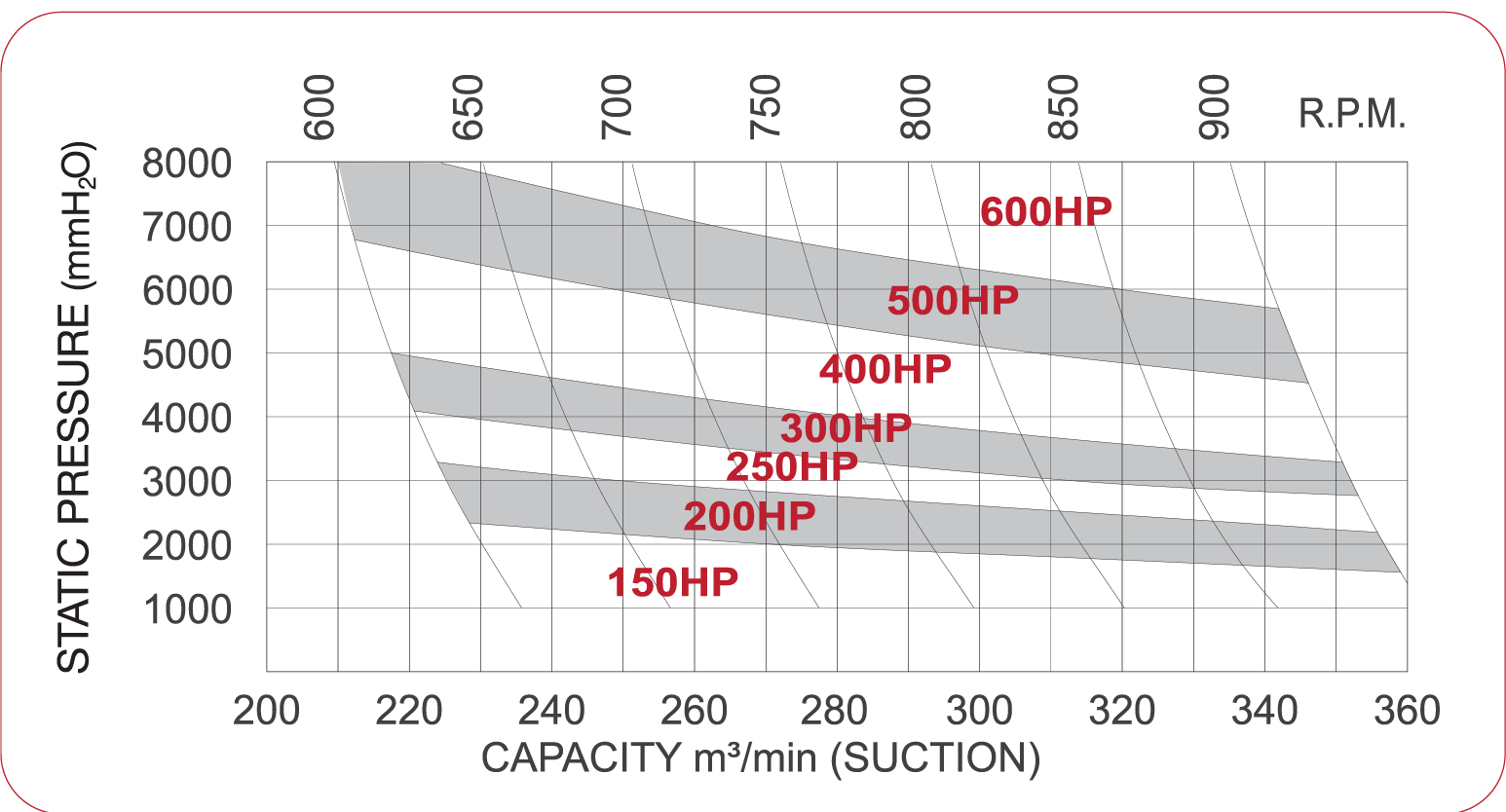

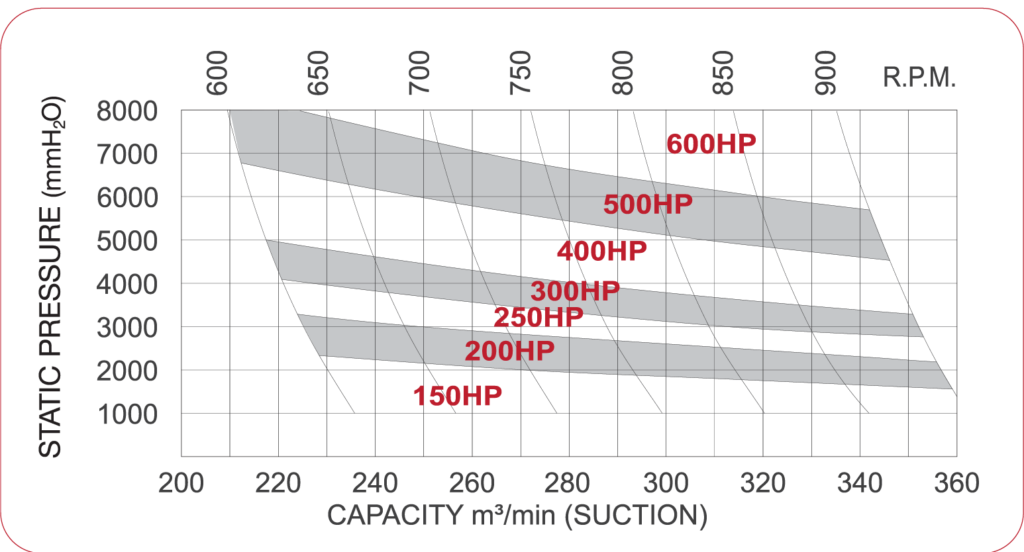

| TYPE | RPM | 1000 mm H2O |
2000 mm H2O |
3000 mm H2O |
4000 mm H2O |
5000 mm H2O |
6000 mm H2O |
7000 mm H2O |
8000 mm H2O |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | ||
| SCB-400 | 600 | 236.3 | 53.28 | 230.3 | 95.65 | 225.5 | 137.7 | 221.3 | 181 | 217.6 | 221.1 | 214.1 | 264.4 | 211.3 | 301.4 | 208.8 | 350.1 |
| 650 | 257.4 | 57.73 | 251.4 | 103.6 | 246.5 | 149.1 | 242.3 | 196 | 238.6 | 239.5 | 235.2 | 286.5 | 232.3 | 326.5 | 229.8 | 379.3 | |
| 700 | 278.4 | 62.17 | 272.4 | 111.6 | 267.5 | 160.6 | 263.3 | 211 | 259.6 | 257.9 | 256.2 | 308.5 | 253.4 | 351.6 | 250.8 | 408.5 | |
| 750 | 299.4 | 66.61 | 293.4 | 119.6 | 288.6 | 172.1 | 284.4 | 226 | 280.7 | 276.4 | 277.2 | 330.5 | 274.4 | 376.7 | 271.9 | 437.7 | |
| 800 | 320.4 | 71.05 | 314.4 | 127.5 | 309.6 | 183.6 | 305.4 | 241 | 301.7 | 294.8 | 298.2 | 352.6 | 295.4 | 401.8 | 292.9 | 466.8 | |
| 850 | 341.5 | 75.49 | 335.5 | 135.5 | 330.6 | 195.0 | 326.4 | 256 | 322.7 | 313.2 | 319.3 | 374.6 | 316.4 | 426.9 | 313.9 | 496.0 | |
| 900 | 362.5 | 79.93 | 356.5 | 143.5 | 351.6 | 206.5 | 347.4 | 271 | 343.7 | 331.6 | 340.3 | 396.7 | 337.5 | 452.0 | 335.0 | 525.2 | |
Units : kW
1000 mmH20 = Approx 0.1 kg/cm2 = Approx 0.01 MPa
| 75 | 110 | 150 | 185 | 225 | 300 | 375 | 450 | 525 | 600 |
