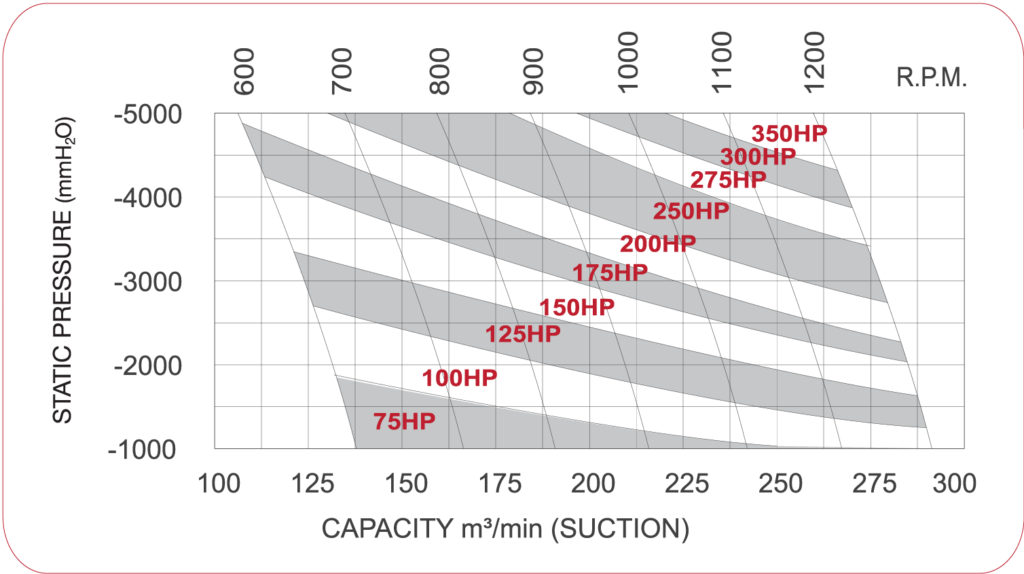

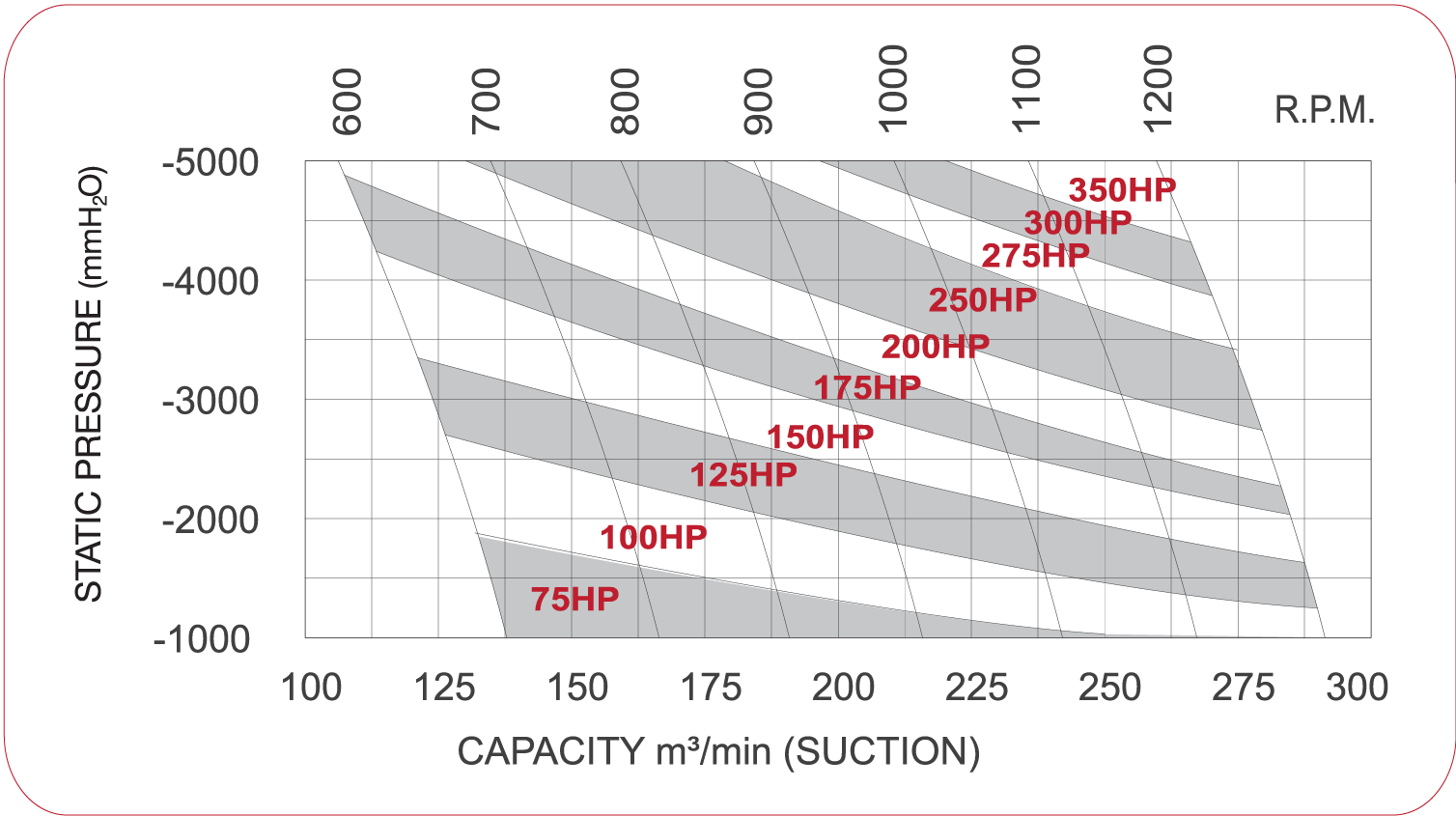

| TYPE | RPM | -1000 mm H2O |
-2000 mm H2O |
-2500 mm H2O |
-3000 mm H2O |
-3500 mm H2O |
-4000 mm H2O |
-4500 mm H2O |
-5000 mm H2O |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | ||
| SCBV-350 | 600 | 122.3 | 28.93 | 117.0 | 50.69 | 113.6 | 61.15 | 110.3 | 73.35 | 107.3 | 83.27 | 104.3 | 93.55 | 100.4 | 105.9 | 95.39 | 116.5 |
| 700 | 144.7 | 33.75 | 139.6 | 59.14 | 136.2 | 71.34 | 132.9 | 85.57 | 129.9 | 97.15 | 126.9 | 109.1 | 123.0 | 123.5 | 118.0 | 135.9 | |
| 800 | 167.3 | 38.57 | 162.2 | 67.58 | 158.8 | 81.53 | 155.5 | 97.80 | 152.5 | 111.0 | 149.5 | 124.7 | 145.6 | 141.2 | 140.6 | 155.4 | |
| 900 | 189.9 | 43.39 | 184.8 | 76.03 | 181.4 | 91.72 | 178.1 | 110.0 | 175.1 | 124.9 | 172.1 | 140.3 | 168.2 | 158.8 | 163.2 | 174.8 | |
| 1000 | 212.5 | 48.21 | 207.4 | 84.48 | 204.0 | 101.9 | 200.7 | 122.2 | 197.7 | 138.8 | 194.7 | 155.9 | 190.8 | 176.5 | 185.8 | 194.2 | |
| 1100 | 235.1 | 53.03 | 230.0 | 92.93 | 226.6 | 112.1 | 223.3 | 134.5 | 220.3 | 152.7 | 217.3 | 171.5 | 213.4 | 194.1 | 208.4 | 213.6 | |
| 1200 | 257.7 | 57.85 | 252.6 | 101.4 | 249.2 | 122.3 | 245.9 | 146.7 | 242.9 | 166.5 | 239.9 | 187.1 | 236 | 221.7 | 231.0 | 233.0 | |
Units : kW
1000 mmH20 = Approx 0.1 kg/cm2 = Approx 0.01 MPa
| 75 | 90 | 110 | 150 | 185 | 225 | 300 |
