| Model | Phase | Voltage | Hz | Rated KW | Blowers with 50 Hz - 60 Hz | Vacuum with 50 Hz - 60 Hz | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Current | Max. | Max. | Noise | Rated Current | Max. | Max. | Noise | |||||
| Amps | mbar | m3/h | dB (A) | Amps | mbar | m3/h | dB (A) | |||||
| SC30-512 | Single | 230 | 50 Hz | 0.38 | 3.7-3.6 / 1.81-1.79 | 100 | 75 | 69 | 3.54-3.48 / 1.79-1.74 | -92 | 74 | 69 |
| 60 Hz | 0.42 | 5.5-4.7 / 2.8-2.36 | 140 | 96 | 68 | 5.1-4.34 / 2.58-2.21 | -125 | 90 | 68 | |||

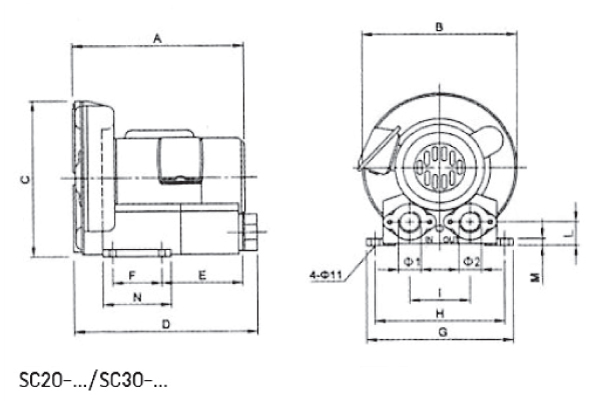

| Model | A | B | C | D | E | F | G | H | I | L | M | N | ø1 | ø2 | Weight Kgs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC30-5.. | 256 | 250 | 257 | 279 | 117 | 83 | 230 | 205 | 100 | 38 | 12 | 110 | G 1" 1/4 | G 1 " 1/4 | 13 |
