| Model | Phase | Voltage | Hz | Rated KW | Blowers with 50 Hz - 60 Hz | Vacuum with 50 Hz - 60 Hz | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Current | Max. | Max. | Noise | Rated Current | Max. | Max. | Noise | |||||
| Amps | mbar | m3/h | dB (A) | Amps | mbar | m3/h | dB (A) | |||||
| SC910-125 | Three | 345-415Δ/600-720 | 50 Hz | 12.5 | 28.0 Δ / 16.2Y | 280 | 1050 | 74 | 28.0 Δ / 16.2Y | -290 | 1050 | 74 |
| 380-480Δ/660-720 | 60 Hz | 14.5 | 29.0 Δ/16.7Y | 260 | 1250 | 79 | 29.0 Δ/16.7Y | -270 | 1250 | 79 | ||

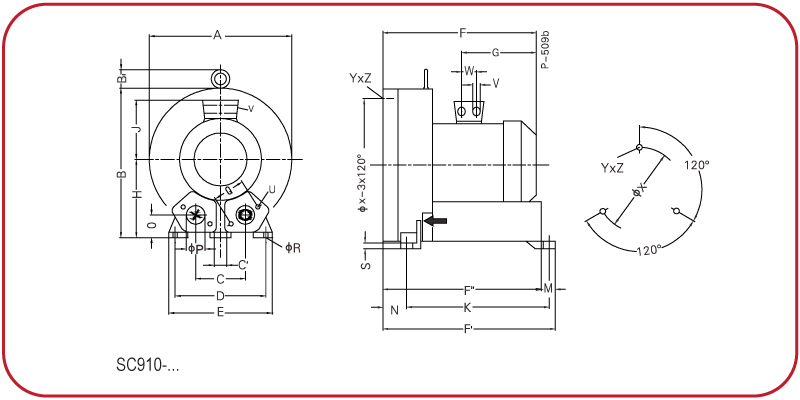

| Model | A | B | B' | C | C' | D | E | F | F' | G | H | J | K | M | N | O | Q | øR | S | U | V | W | øX | YxZ | X-Holes | Weight Kgs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC910-125 | 550 | 569 | 55 | 207 | 15 | 360 | 415 | 611 | 644 | 345 | 300 | 197 | 533 | 39 | 89 | 92 | 150 | 15 | 21 | M12X30 | 4XM32X1.6 | 54 | 490 | M12X30 | 0o/120o/240o |
