| Model | Phase | Voltage | Hz | Rated KW | Blowers with 50 Hz - 60 Hz | Vacuum with 50 Hz - 60 Hz | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Current | Max. | Max. | Noise | Rated Current | Max. | Max. | Noise | |||||
| Amps | mbar | m3/h | dB (A) | Amps | mbar | m3/h | dB (A) | |||||
| SC830-076 | Three | 345-415Δ/600-720 | 50 Hz | 7.6 | 16.7 Δ/9.6Y | 260 | 700 | 70 | 16.7 Δ/ 9.6Y | -270 | 700 | 70 |
| 380-480Δ/660-720 | 60 Hz | 8.6 | 17.3 Δ/10.0Y | 260 | 840 | 74 | 17.3 Δ/10.0Y | -270 | 840 | 74 | ||

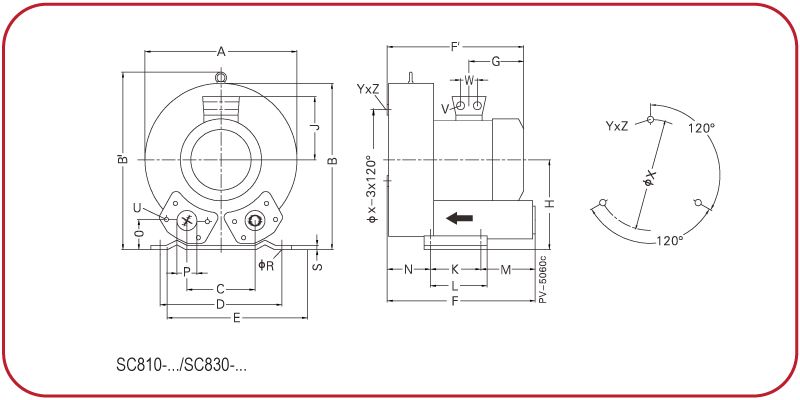

| Model | A | A' | B | B' | C | D | E | F | F' | G | H | H' | J | K | L | M | N | N' | O | øP | øR | S | V | W | øX | YxZ | X-Holes | Weight Kgs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC830-076 | 451 | - | 461 | 509 | 152 | 356 | 449 | 449 | 492 | 247 | 240 | - | 167 | 170 | 217 | 140 | 139 | - | 65 | 65 | 15 | 6 | 4XM32X1.7 | 42 | 286 | M12X22 | 0o/120o/240o |
