| Model | Phase | Voltage | Hz | Rated KW | Blowers with 50 Hz - 60 Hz | Vacuum with 50 Hz - 60 Hz | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Current | Max. | Max. | Noise | Rated Current | Max. | Max. | Noise | |||||
| Amps | mbar | m3/h | dB (A) | Amps | mbar | m3/h | dB (A) | |||||
| SC50-622 | Three | 200-240/345-415 | 50 Hz | 2.2 | 8.67-9.45/ 4.95-6.24 | 270 | 210 | 72 | 7.08-8.79 / 4.2-6.06 | -220 | 210 | 72 |
| 200-275/380-480 | 60 Hz | 2.55 | 10-8.8/5.3-4.84 | 270 | 250 | 73 | 8.55-7.7 / 4.6-4.45 | -240 | 230 | 73 | ||

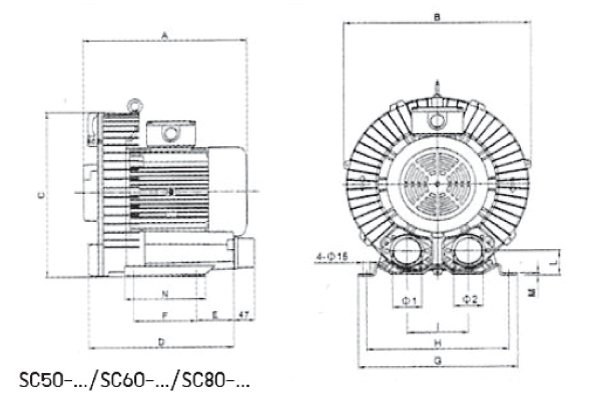

| Model | A | B | C | D | E | F | G | H | I | L | M | N | ø1 | ø2 | Weight Kgs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC50-6.. | 317 | 333 | 345 | 389 | 143 | 116 | 296 | 260 | 120 | 48 | 4 | 155 | G 2" | G 2" | 26 |
