| Model | Phase | Voltage | Hz | Rated KW | Blowers with 50 Hz - 60 Hz | Vacuum with 50 Hz - 60 Hz | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Current | Max. | Max. | Noise | Rated Current | Max. | Max. | Noise | |||||
| Amps | mbar | m3/h | dB (A) | Amps | mbar | m3/h | dB (A) | |||||
| SC40-622 | Three | 200-240/345-415 | 50 Hz | 1.1 | 4.8-5.53/ 2.8-3.7 | 200 | 144 | 72 | 4.5-5.35/ 2.65-3.6 | -210 | 144 | 72 |
| 200-275/380-480 | 60 Hz | 1.5 | 6.2-5.3 / 3.3-3.1 | 230 | 180 | 69 | 5.66-5 / 3-2.91 | -180 | 170 | 69 | ||

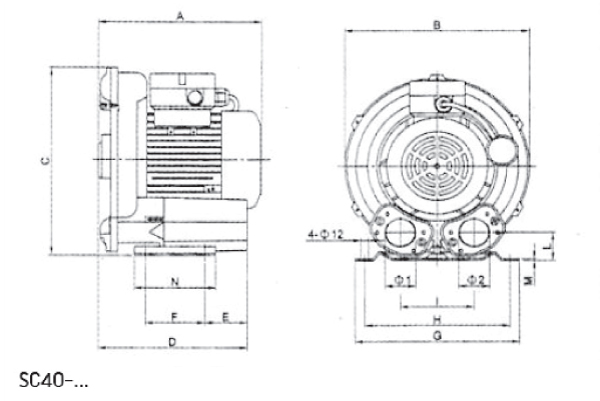

| Model | A | B | C | D | E | F | G | H | I | L | M | N | ø1 | ø2 | Weight Kgs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC40-6.. | 281 | 286 | 303 | 238 | 68 | 95 | 255 | 255 | 115 | 46 | 3 | 130 | G 1" 1/2 | G 1" 1/2 | 18.2 |
